IGS

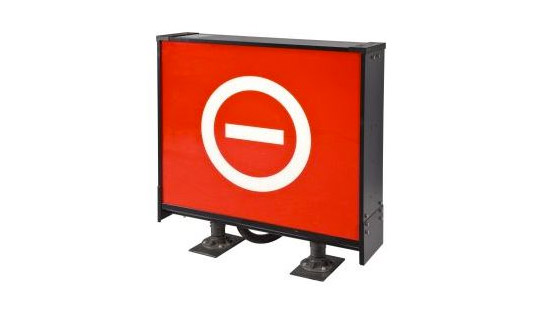

Fluorescent Luminous Guidance Signs
COMPLIANT with the Current Edition of the following Specs:
ICAO: Annex 14 - Volume I
NATO: STANAG 3316
NATO: STANAG 3316
DIMENSIONS:
Width: 1 Module: 991 mm, 2 Modules: 1976 mm, 3 Modules: 2961 mm, 4 Modules: 3946 mm
Height: Character H300: 838 mm, Character H400: 1038 mm
Depth: 248 mm
Height: Character H300: 838 mm, Character H400: 1038 mm
Depth: 248 mm
CONSUMPTIONS:
Power required to the CCR for each module:
Current fixed at 6.6 A: 150 VA
Current variable between 4.8 - 6.6 A: 200 VA
Current variable between 2.8 - 6.6 A: 250 VA
Current fixed at 6.6 A: 150 VA
Current variable between 4.8 - 6.6 A: 200 VA
Current variable between 2.8 - 6.6 A: 250 VA
MAIN OPTION:
01 = Tether
18 = Double power supply for 3 and 4 module signs
23 = Retroreflective faces
