LETE

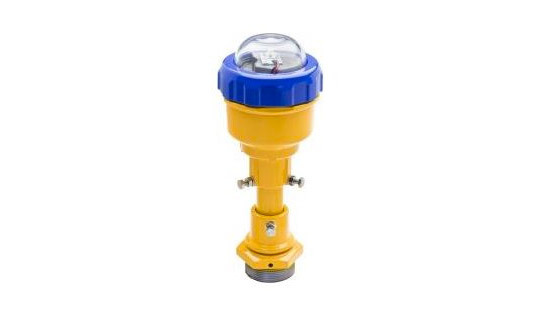

LED Elevated Taxiway Edge Light
COMPLIANT with the Current Edition of the following Specs:
ICAO: Annex 14 - Volume I
IEC: TS 61827
FAA: L-861T AC150/5345-46 and "Engineering Brief No.67"
NATO: STANAG 3316
IEC: TS 61827
FAA: L-861T AC150/5345-46 and "Engineering Brief No.67"
NATO: STANAG 3316
DIMENSIONS:
Width: Ø110 mm
Height: 250 mm
Breakable Coupling Thread: 1"1/2 - 12 UNF, 2" - 11 1/2 NPS, 2"-11 GAS
Height: 250 mm
Breakable Coupling Thread: 1"1/2 - 12 UNF, 2" - 11 1/2 NPS, 2"-11 GAS
CONSUMPTIONS:
Taxiway Edge Blue: 4 VA
MAIN OPTIONS:
Arctic Kit: electric device, thermostatically controlled, that heats the area near the prisms (inset fixtures) or the external glass lens (elevated fixtures) favoring the melting of the ice and/or snow; thus avoids the light beam obstruction with a behaviour similar to a traditional halogen lamp. Less than 10 VA.
Monitoring: electronic device that returns information of open circuit at the secondary of the isolation transformer in case of failure of a luminous LED source or control board.
