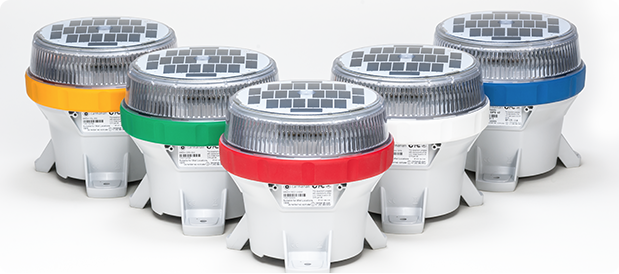

OL4 Solar Warning Lights

Solar Panel

High-efficiency solar cells with bypass and blocking diode function. Includes Maximum power point tracking (MPPT) for optimal energy collection

Battery Best-in-class battery pack. Tool-less, replaceable and recyclable with extreme temperature range. Provides status - Good, Charge or Bad (replace)
Light Source High Power LED. Consistent intensity provided by colour-specific, temperature-corrected LED drivers
Maximum Peak Intensity 4 candela steady-on, 18 candela flashing, 12.5% duty cycle (Red LEDs)
Colours Red, Green, White, Yellow, Blue
ICAO and SAE25050 (FAA) compliant chromaticity
Colour Indicator FAA Eng. Brief 67 compliant
Flash Patterns  256+
Energy Management System (EMS) Intelligent microprocessor
Automatic Light Control (ALC) Reduces brightness in response to unusually low amounts of sunlight for continued function
Programming Optional infrared programmer available
Construction Premium grade, UV resistant, polycarbonate/polysiloxane body and lens with waterproof vent (double O-ring sealing)
Operating Temperature -45° to 124° F (-43° to 51° C)
Storage Temperature -45° to 176° F (-43° to 80° C)
Weight 3.5 lbs (1.58 kg)
Wind Loading 400 mph (180 m/s)
Humidity, Immersion, Shock and Vibration MIL-STD-202G
Solar Radiation, Salt and Fog MIL-STD-810G
Compliance RoHS,  CE
