L-830

Series Isolation Transformers

s419

APPLICATION:
Integro FAA Approved Series Isolation Transformers are used to isolate high operating voltages for constant current airfield lights in a series circuit. They are encapsulated and designed to operate efficiently while submerged in water. They are approved to operate between - 55 C and + 65 C and can be installed above ground, in metal cans or direct buried.
WHERE THEY ARE USED:
Integro Series Isolation Transformers are installed at most major airports in the United States and Mexico, as well as in many countries in South America, Europe, Asia and Africa. Our American made Series Isolation Transformers are also preferred at our many military airports in the United States.
APPROVALS AND TESTING:
Integro Series Isolation Transformers are approved to the FAA L-830 specification and are certified by ITS Testing Labs to FAA Advisory Circular 150/5345-47. All Integro Transformers undergo 100% Quality Testing which includes visual inspection, ratio testing, heat testing and HIPOT testing after heating and 12 hour soaking.
DESIGN:

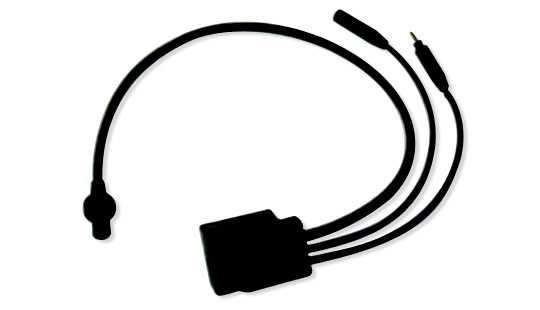

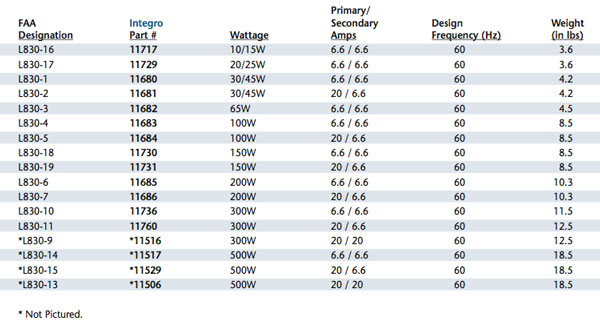

Integro Series Isolation Transformers are wound for 6.6 and 20 Amp primary circuit applications. They are encapsulated in thermoplastic rubber for superior durability and dielectric strength and are manufactured with 2 primary and 1 secondary FAA L-823 listed leads.

The leads are:

Style 2 – Male Primary Lead on 8/1 cable, 24" long

Style 9 – Female Primary Lead on 8/1 cable, 24" long (Both leads are rated 25 Amps and 5,000 Volts)

Style 8 – Female Secondary Lead on 12/2 SOW cable, (rated 20 Amps and 600 Volts), 48" long
